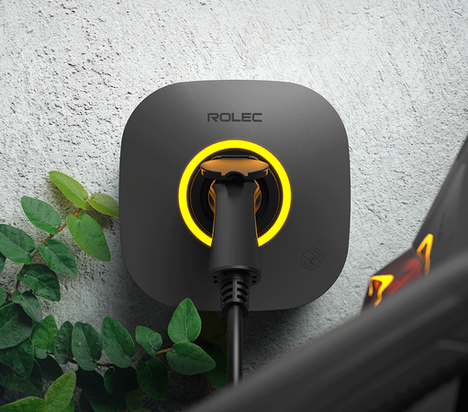

EVO
The future of intelligent charging
Affordable, compact, and stylish EV charging solution. EVO supports solar integration, which can allocate any available surplus solar power to the vehicle for a 100% renewable, cost-free charge.

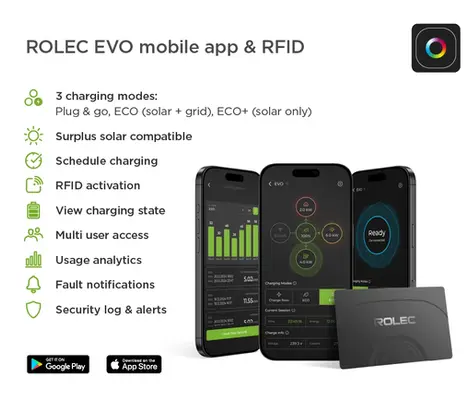

With the EVO app, users have full control of their charger including the ability to set charging schedules and integrate with smart tariffs to save on off-peak rates. Alternatively, users can connect their charger to any OCPP app of their choice.
Framtidssäker och funktionsrik
Plug & go, mobile app or RFID controlled charging
Universal charging socket
Up to 7.4kW or 22kW charging output
Free ROLEC EVO mobile app
2x EVO RFID charging cards included
Scheduled / off-peak charging
Surplus solar charging compatible
PME fault detection* (no earth rod required)
Dynamic load balancing (CT clamp & cable included**)
Three to Single Phase switching (22kW model only)
OCPP 1.6 compliant
AC 30mA Type-A and DC 6mA protection
4G (22kW model only) / Wi-Fi / Ethernet connectivity
Strong and durable IP54 / IK08 rated
Corrosion and fire resistant
Wall or post mounting options
Funding, operation, & maintenance options
5 Year warranty
*Selectable on installation of 22kW Three Phase model
**Single Phase models only, Three Phase models require optional CT kit
NYCKELFUNKTIONER
Up to 22kW
charging speeds
Under 15 minute
easy installation
OCPP 1.6
compliant
Surplus solar
charging compatible
EV regulations
compliant
5 Year
warranty
SUPPORTS SURPLUS SOLAR CHARGING FOR A 100% RENEWABLE, COST-FREE CHARGE
SMART CHARGING SIMPLIFIED
AWARD WINNING CHARGER
3x SOLAR CHARGING MODES
PASSIVE COOLING SYSTEM
PHASE SWITCHING*
SPECIFIKATIONER
MATERIALS
Unit – PC/ABS Alloy, flammability rating UL94-V0
Heat Sink – Aluminium alloy
DIMENSIONS
260mm (W) 260mm (H) 112mm (D)
CHARGE PROTOCOL
Mode 3
INPUT VOLTAGE
230V AC (±10 %)
50/60Hz (Single Phase)
400V AC (±10 %)
50/60Hz (Three Phase)
PROTECTION
Residual current protection – AC 30mA Type A & DC 6mA (with test button) | Lightning surge, over temperature protection | PME fault detection – No earth electrode/rod required (Selectable on installation of 22kW model) | Supports automatic dynamic load balancing
OPTIONS & ACCESSORIES
• EVFP0035 | Rolec universal mounting post (fits up to 2 chargers)
• EVFP0120 | EVO plate for mounting post
• EVPP0100 | 5m 32A Type 2 to Type 2 charging cable
• EVPP0107 | 10m 32A Type 2 to Type 2 charging cable
• EVPP0105 | 5m 32A Three Phase Type 2 to Type 2 charging cable
• EVPP0108 | 10m 32A Three Phase Type 2 to Type 2 charging cable
• EVIN0010 | 20A Single Phase EV consumer unit with Type A RCBO
• EVIN0015 | 40A Single Phase EV consumer unit with Type A RCBO
• EVIN0070 | 20A Three Phase EV consumer unit with Type A RCBO
• EVIN0075 | 40A Three Phase EV consumer unit with Type A RCBO
• EVRS0030 | Remote wall mount for Type 2 charge gun holster
• ACSR5011 | EVO Single Phase Solar CT Clamp Kit
• ACSR5013 | EVO Three Phase Load Balancing CT Clamp Kit
• ACSR5014 | EVO Three Phase Solar & Load Balancing CT Clamp Kit
