QUANTUM TOURING

PEDESTALS

This exciting new and stylish range of anodised aluminium hook-up bollards adds a modern approach to our caravan park touring hook-up range whilst complying with the 18th edition regulations to include interlock sockets.

QUANTUM TOURING PEDESTALS

KEY FEATURES

INTERNAL ELECTRIC, WATER & LIGHTING SEGREGATION

INTERNAL ELECTRIC, WATER & LIGHTING SEGREGATION

LED ILLUMINATION

LED ILLUMINATION

UV STABILISED

UV STABILISED

STRONG & DURABLE

STRONG & DURABLE

IPX6 WEATHER PROOF

IPX6 WEATHER PROOF

CE CERTIFIED

CE CERTIFIED

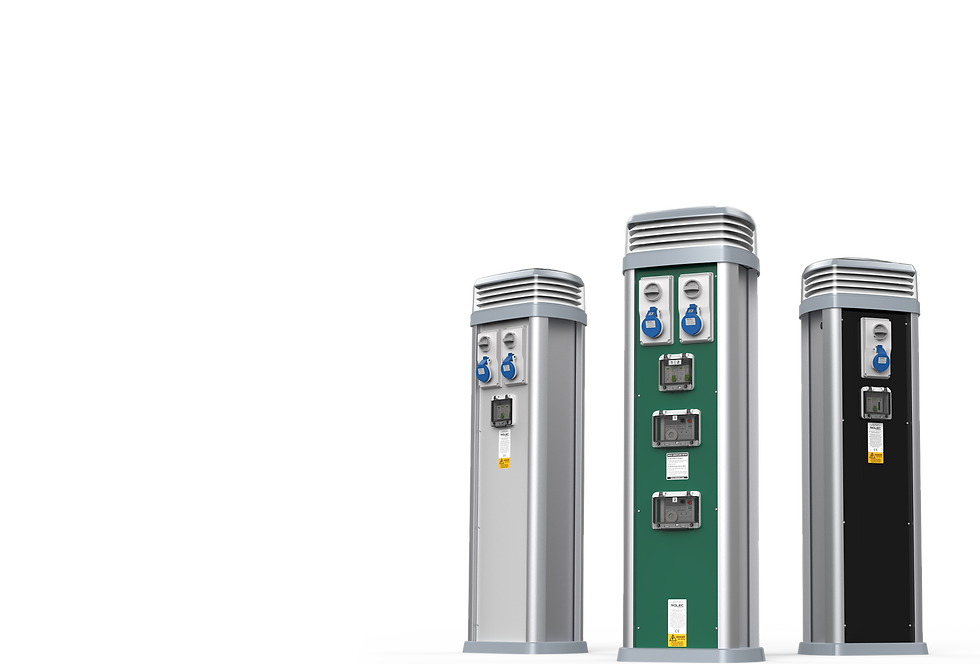

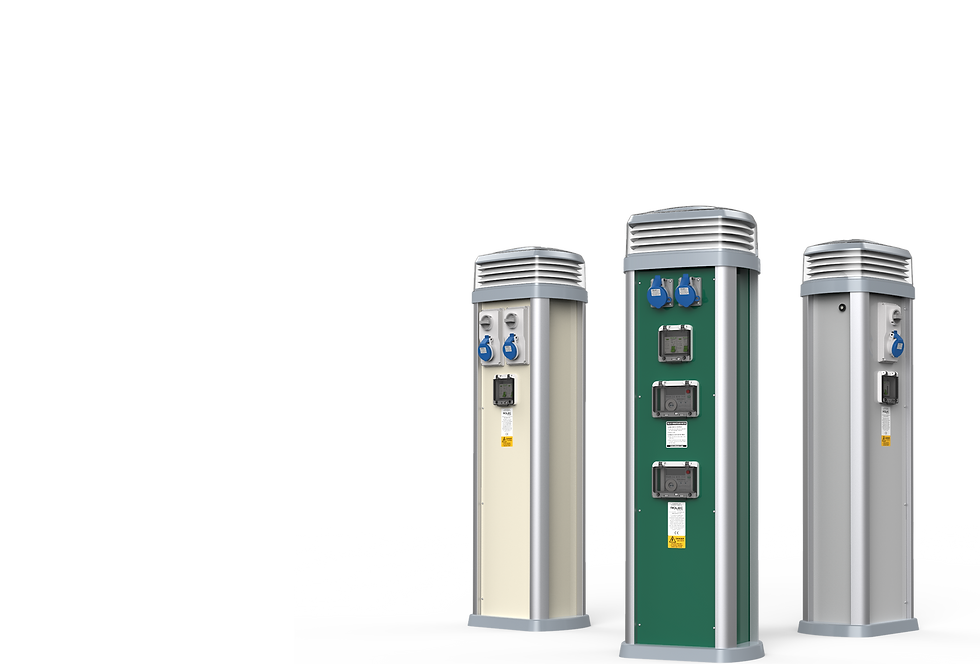

The QUANTUM Pedestal Range

  • 25 micron marine grade 6065 anodised extruded aluminium body

  • High impact resistant UV stabilised polycarbonate lighting lens assembly

  • 360 degree low energy LED lighting

  • Heavy duty polycarbonate base

  • Fully segregated electric, water and lighting compartments

  • Front, back and side panel material variants: steel, composite, aluminium

  • Front, back and side panel colour variants

  • 16A IP44 interlock sockets

  • 1/2”water tap

  • Pre-paid SmartMaster solutions

  • Able to accommodate all switching and monitoring management solutions

  • Designed for ease of installation and maintenance

  • Available in 1, 2, 3 and 4way versions

SUITABLE FOR


TOURING CARAVANS


STATIC CARAVANS


CAR PARKS (EV)


AMENITY AREAS

SPECIFICATIONS

MATERIALS

Head: FR-VS UV Stabilised Polycarbonate | Body: Alloy 6063

DIMENSIONS

382.5mm (W) x 690mm - 1690mm (H) x 262.5mm (D)

IP RATING

Pedestal: IPX6 BS EN 60529
| Socket: IP44 (Interlock)

VOLTAGE

230V

OVERLOAD & FAULT CURRENT PROTECTION

MCBs IEC 60898-1 | RCD or RCBO BS EN IEC 61009-1

Need help with your caravan park, campsite or holiday park destinations?
Give us a call on +44 (0) 1205 724 754

DATASHEET

Need help with your caravan park, campsite or holiday park destinations?
Give us a call on +44 (0) 1205 724 754

A unique and hard wearing electrical hook-up touring pedestal, perfect for all caravan sites and park destinations

OPTIONAL EXTRAS

Panel colours and materials

Branding vinyls

Extruded anodised aluminium door

Electric and water metering

Steel waste trays

Switching and control

LED Colours

Heat trace tape

CARAVAN HOOK-UPS

RELATED PRODUCT RANGES

Classic Touring Pedestals

Classic Touring Pedestals

Hook-Up Connection Units

Hook-Up Connection Units

Direct Connection Units

Direct Connection Units

PRODUCT CODES

LSQR0010i LSQR0010i/TAP LSQR0010i/KWH LSQR0010i/KWH/TAP LSQR0010i/SMART LSQR0010i/SMART/TAP LSQR0020i LSQR0020i/TAP LSQR0020i/KWH LSQR0020i/KWH/TAP LSQR0020i/SMART LSQR0020i/SMART/TAP LSQR0030i LSQR0030i/TAP LSQR0030i/KWH LSQR0030i/KWH/TAP LSQR0030i/SMART LSQR0030i/SMART/TAP LSQR0040i LSQR0040i/TAP LSQR0040i/KWH LSQR0040i/KWH/TAP LSQR0010 LSQR0010/TAP LSQR0010/KWH LSQR0010/KWH/TAP LSQR0010/SMART LSQR0010/SMART/TAP LSQR0020 LSQR0020/TAP LSQR0020/KWH LSQR0020/KWH/TAP LSQR0020/SMART LSQR0020/SMART/TAP LSQR0030 LSQR0030/TAP LSQR0030/KWH LSQR0030/KWH/TAP LSQR0030/SMART LSQR0030/SMART/TAP LSQR0040 LSQR0040/TAP LSQR0040/KWH LSQR0040/KWH/TAP
